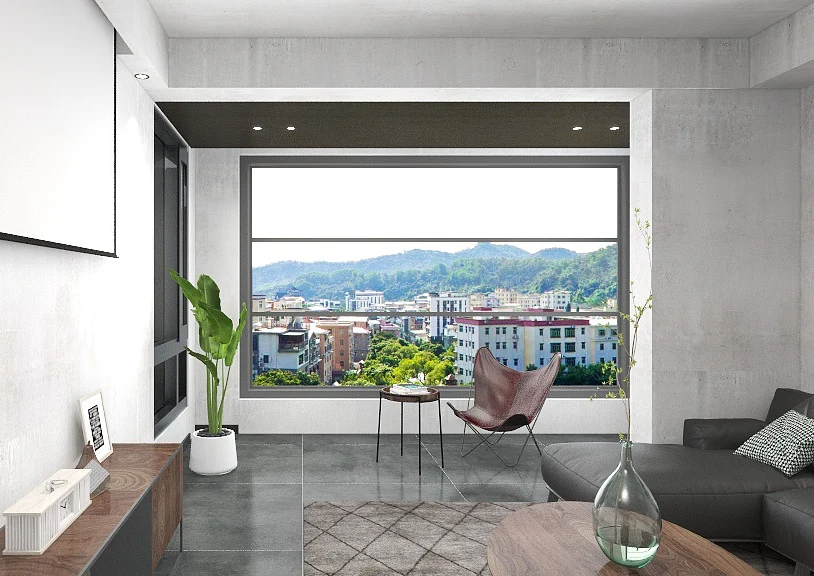

Electric Lift Windows
- Electric lift windows are motorized vertical-opening window systems that move glass panels upward or downward via an integrated electric drive mechanism.
- With one-touch control, the window transforms a solid wall into an open pass-through or ventilation opening.
- 50% extra-large area openable
- Motorized vertical lift system
- Strong aluminum framing
- Double-layer explosion-proof glass
- Intelligent safety design
Main Components

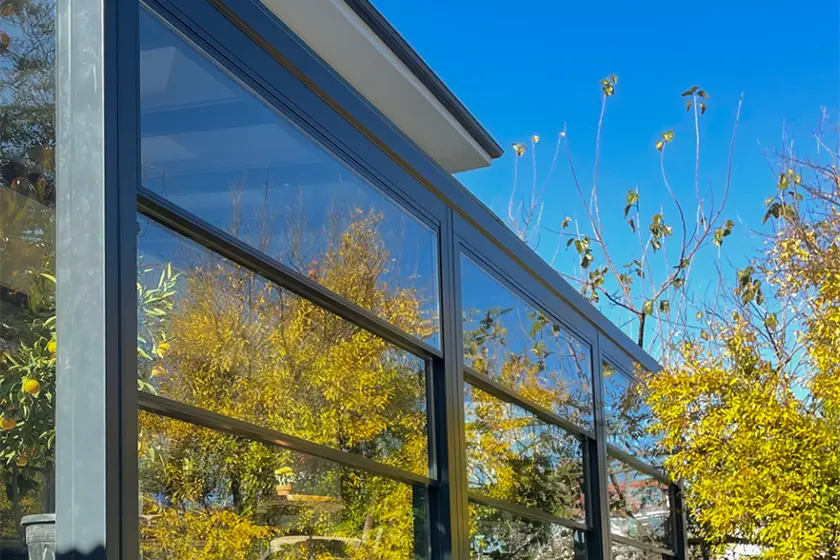

- Thermal break aluminum profiles.
- Provides strong structural support for glass panels.
- Designed for smooth integration with walls or façades.
- Supports weather sealing and long-term stability.

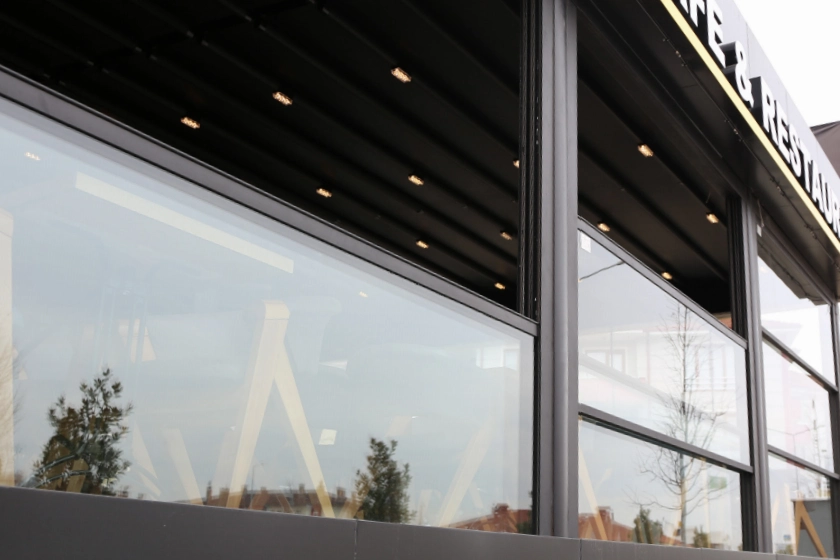

- Double-layered laminated explosion-proof glass.
- Excellent light transmission and clear visibility.
- Good thermal and sound insulation performance.
- Multiple thickness and tint options available.
- Screw/chain lifting options.
- Stable and quiet movement during vertical lifting.
- Designed for frequent use and long service life.
- Compatible with remote or wall switch control.

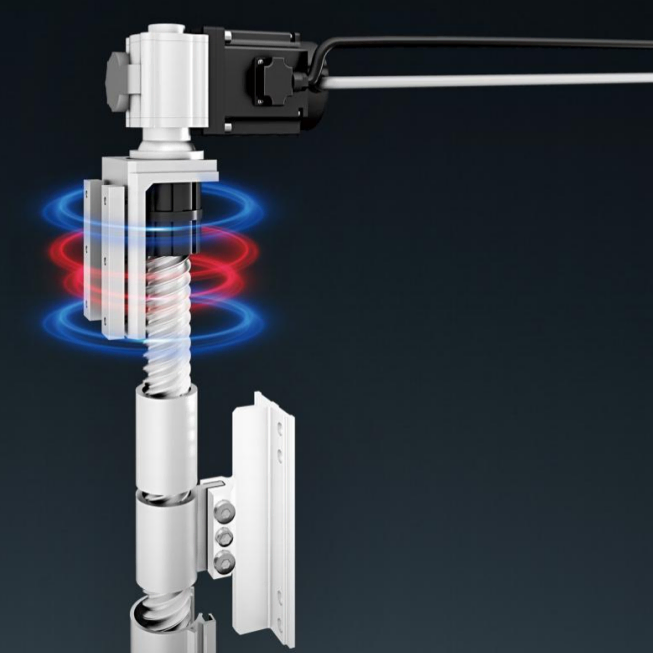

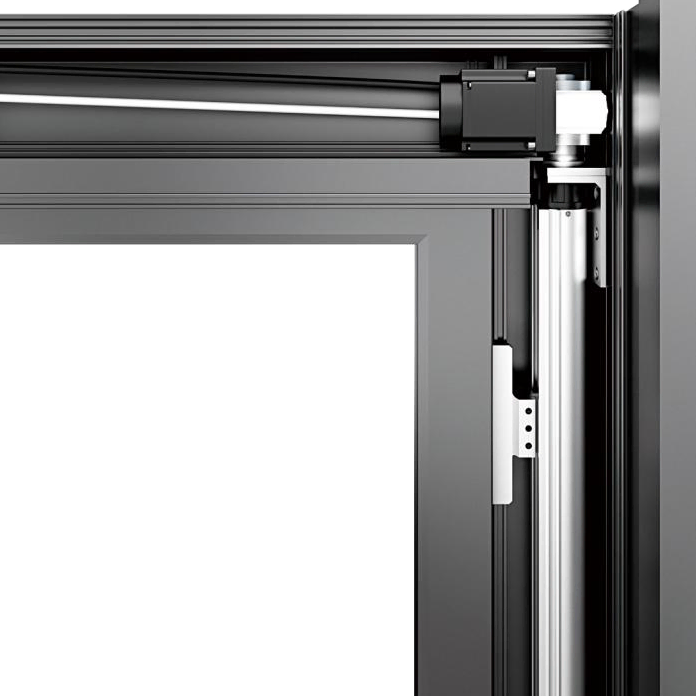

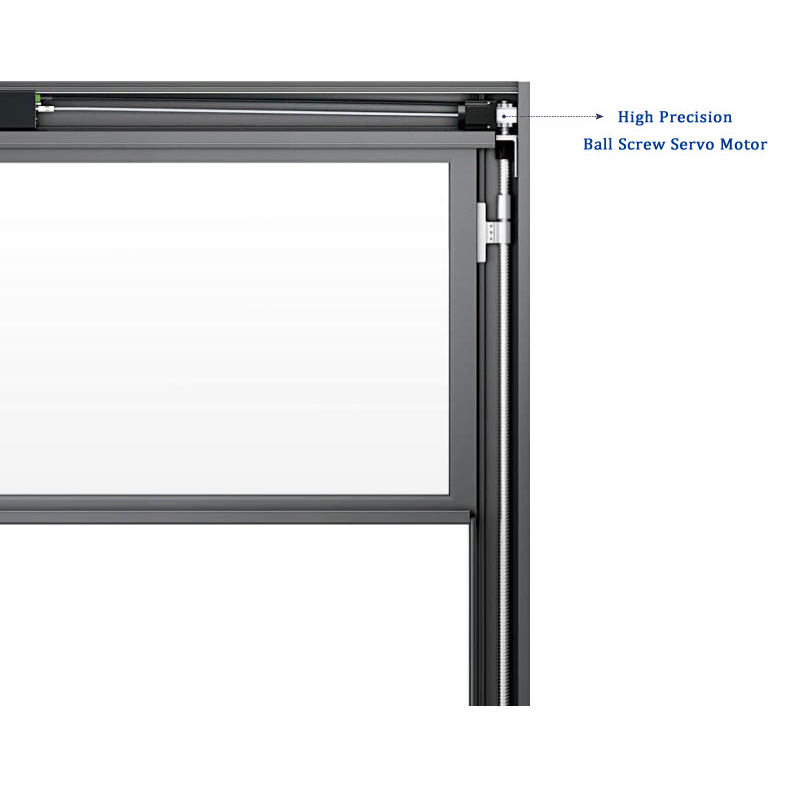

Screw Lifting System
This system equipped with dual industrial ball screw servo motors, employs a suspended structure, ball bearings, and ball nuts to fix the movable window sash, precisely controlling the entire window's raising and lowering. It features:
- High-precision carbon steel twin-screw drive.
- Capable of bearing loads up to 300kg.
- Precise average transmission ratio for stable power transfer.
- Wear-resistant and high-temperature resistant
- No elastic slippage or differential slippage
This system is the preferred choice for small to medium-sized windows of the following specifications:
- Width: 1m < Width < 4.8m
- Height: 1.8m < Height < 3.6m
- Weight: ≤ 300kg

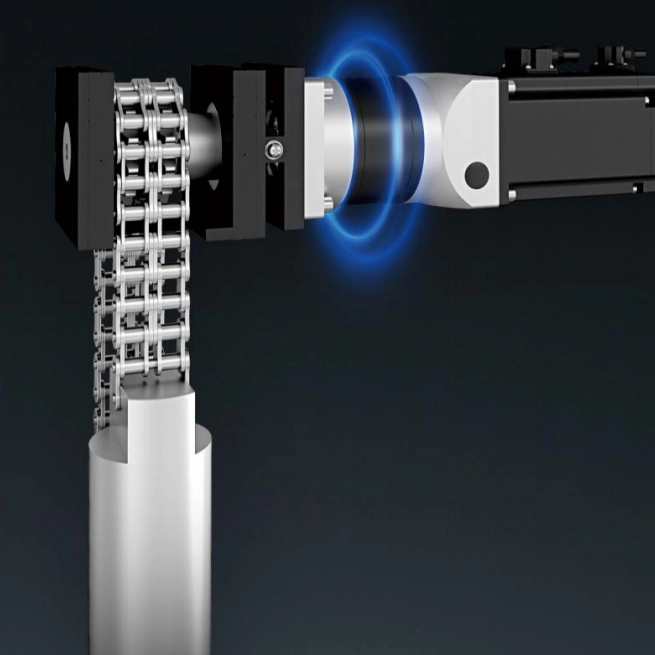

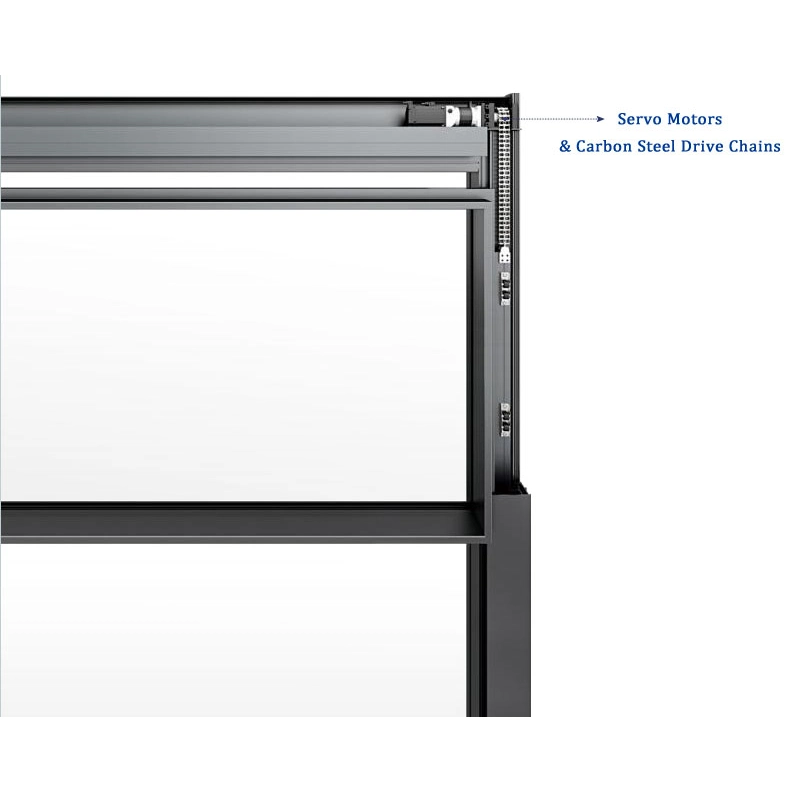

Chain Lifting System
This system is equipped with high-power (400w-750w) dual servo motors and double-row carbon steel drive chains. It operates smoothly and quietly, with effortless and unobstructed free suspension. The servo motors incorporate built-in brakes, eliminating concerns about the moving panel falling during a power outage.
- Continuous operation for 10,000 hours.
- Up to 3000 rpm speed.
- Synchronous drive.
- Can withstand loads up to 1200 kg.
- Easier installation, commissioning, and maintenance.
This system is the preferred choice for small to large-sized windows of the following specifications:
- Width: 1m < W < 10m
- Height: 1.8m < H < 3.6m
- Weight: ≤ 1200kg
Safety Features

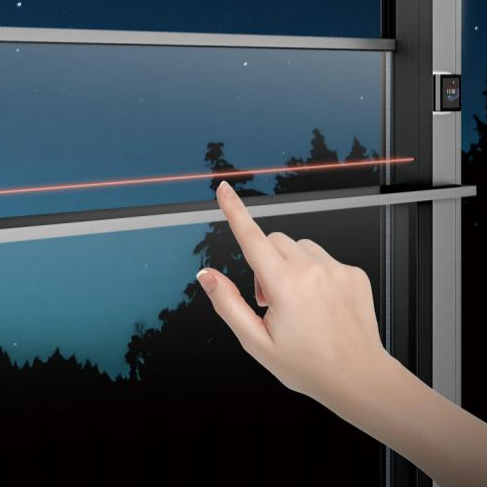

Infrared Anti-Pinch
Built-in infrared sensors detect obstacles during operation and immediately stop to prevent injury or damage.

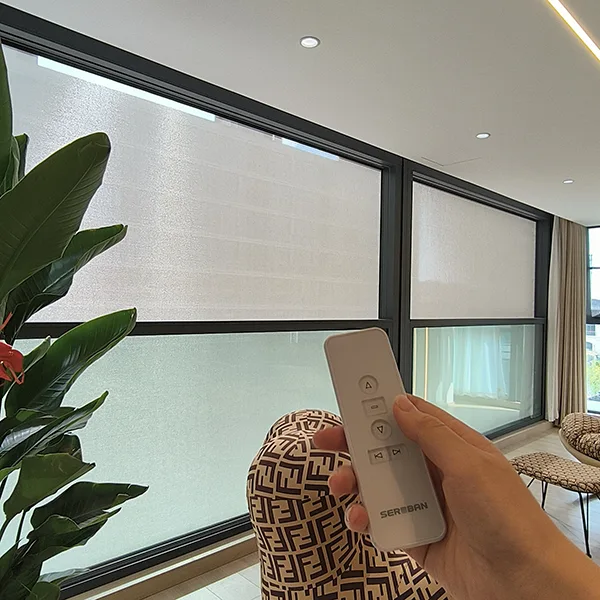

Electric Protective Screen
An electric safety screen provides an additional physical barrier, enhancing safety while maintaining ventilation and visibility.

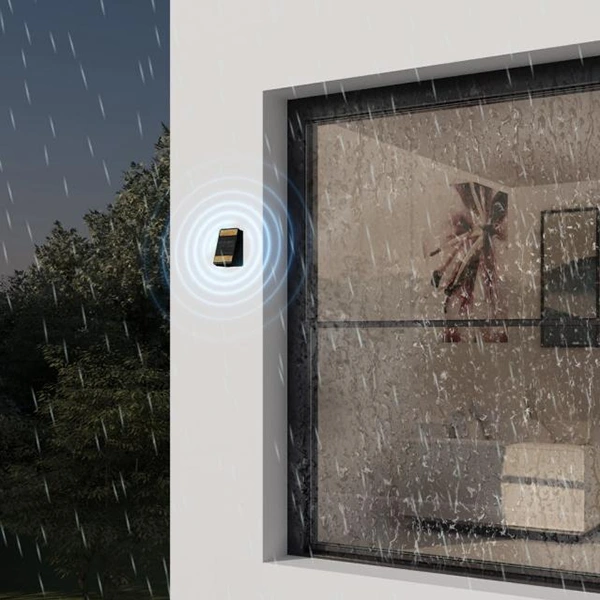

Wind and Rain Sensor
Automatic sensors monitor weather conditions and trigger window closure during strong wind or rain to protect interiors and the system.

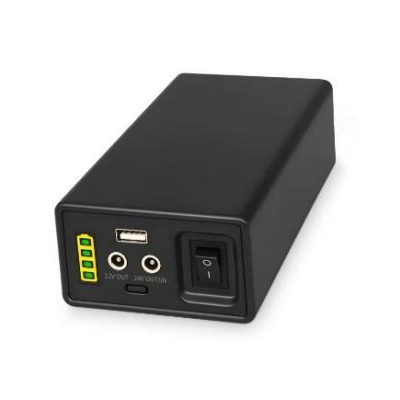

Backup Power Supply
A lithium backup power system ensures the window can be safely operated during power outages, maintaining security and functionality.
Control Methods

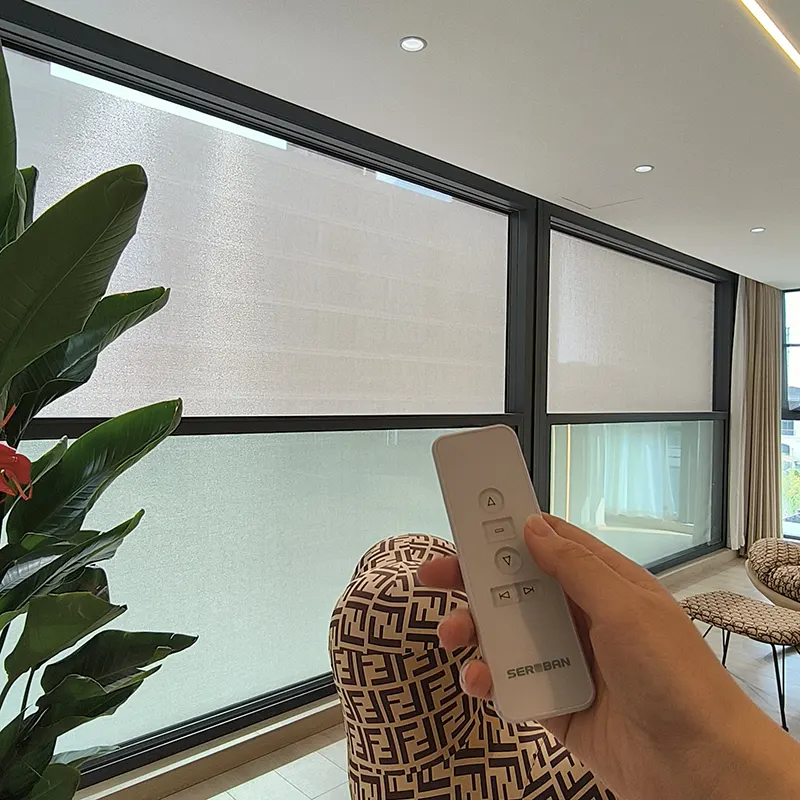

Remote Control
Dual-channel remote control for one-touch operating of windows and screens.

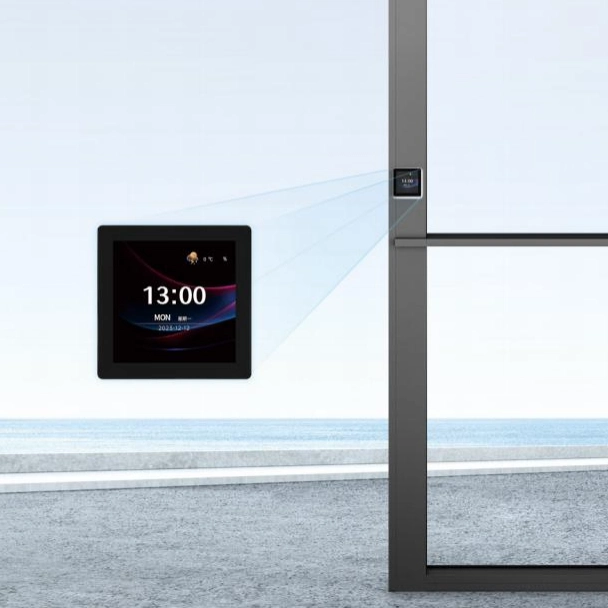

Touchscreen Control
User-friendly interface, responsive touch screen, auto-sleep timer, and fault information display.

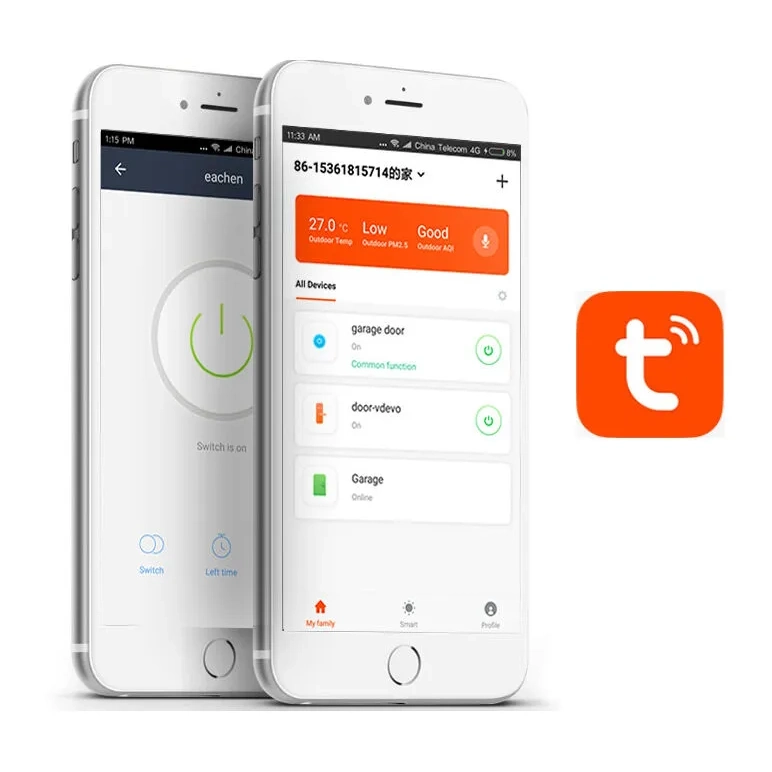

Tuya App Control
Connect multiple devices or the same device type within the same space.
Smart Home Platforms
Supports Wi-Fi third-party integration and includes an interface for smart home systems.
