Motorized Adjustable Louvered Pergola
Equipped with DC tubular motor, it allows you to adjust the angle of louver slats to control sunlight, shade, and ventilation effortlessly at the touch of a button.
- Aluminum alloy material
- Max. length 6m
- Max. width 5m
- Default height 2.7m
- Tubular motor & remote control
- Wide optional accessories
Main Parts
Slat
Available in 180x40x1.4 mm and 220x48x1.7 mm sizes for customizable roof coverage.

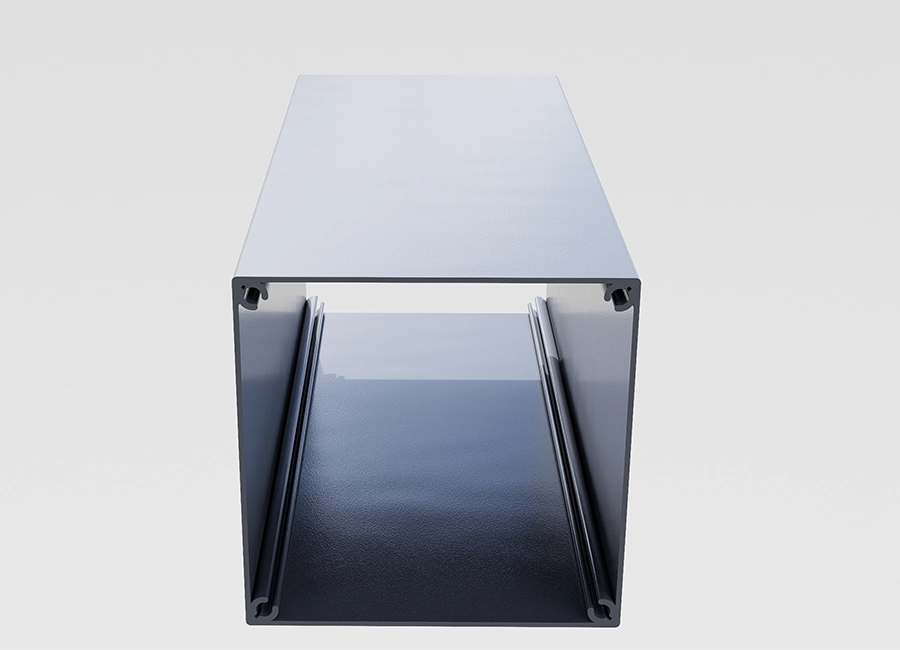

Post
Standard 150x150x2.2 mm post dimension, providing strong structural support.

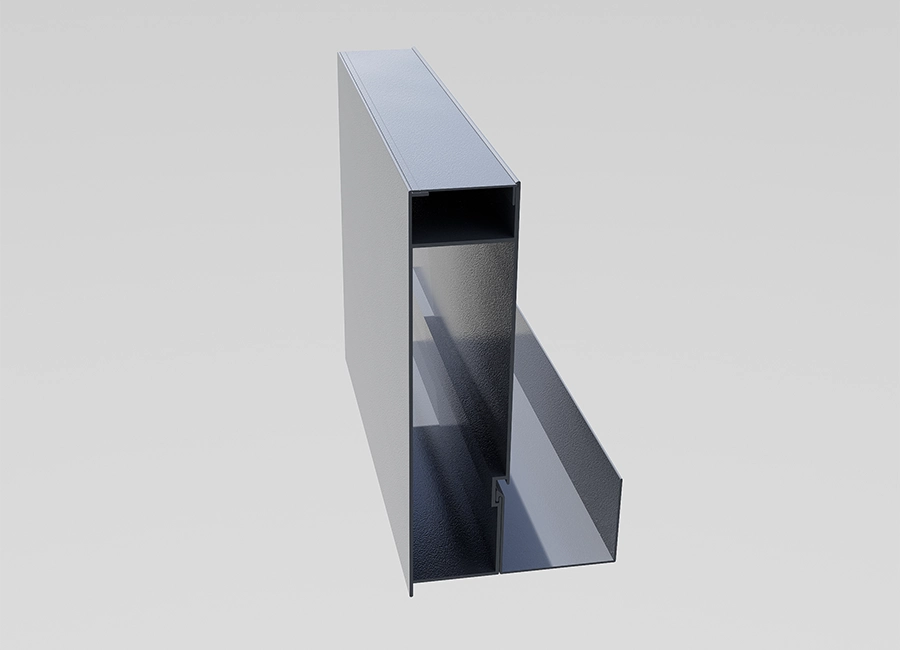

Side Beam
Available in 190×40×1.6 mm and 260×60×2.5 mm sizes to fit different pergola spans.

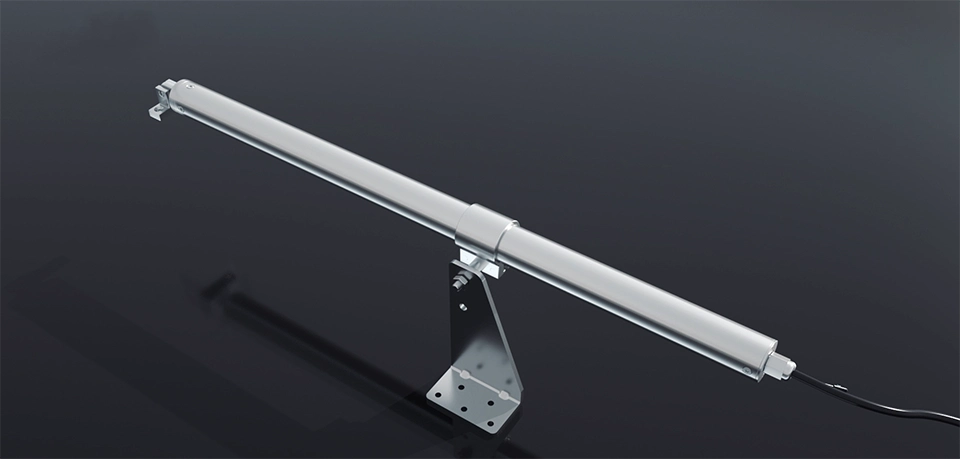

DC Tubular Motor
DC tubular motors are integrated inside the pergola's rotating shaft to smoothly and accurately adjust the opening angle of aluminum louvers.
It has the following features:
- Precision planetary geared motor
- 24V/1.3A DC power supply
- Built-in overload protection
- Outer tube made of aerospace-grade aluminum
- More than 10,000 endurance tests
- <30dB low running noise
- IP67 protection rating
| Specifications | Value |
| Rated Voltage | 24V |
| Rated Current | 1.3A |
| Rated Power | 31W |
| Motor Diameter | 36mm |
| Torque | 800N.m |
| Stroke | 300mm |
| Speed | 8mm/s |
| Working Temperature | -20 ~ +80°C |
| IP Rate | IP67 |
Remote Control System
The LED lighting system can be conveniently controlled with a dedicated remote control transmitter, which is designed for intuitive use and reliable signal transmission.
| Specifications | Value |
| Input Voltage | 100V-230V AC |
| Control Method | RF Remote Control |
| RF Receiving Frequency | 433.92MHz |
| RF Receiving Sensitivity | ≥-110dBm |
| Load Power | ≤1500W |
| Motor Running Time | 5min |
| LED Output | DC24V MAX 300W |
| Louvre Motor Output | 24V DC |
| Operating Temperature | -20 ~ +60°C |
Main Features
Rubber Strip Integrated into Slats
Built-in rubber strips create a tight seal, ensuring 100% waterproof performance during rain.

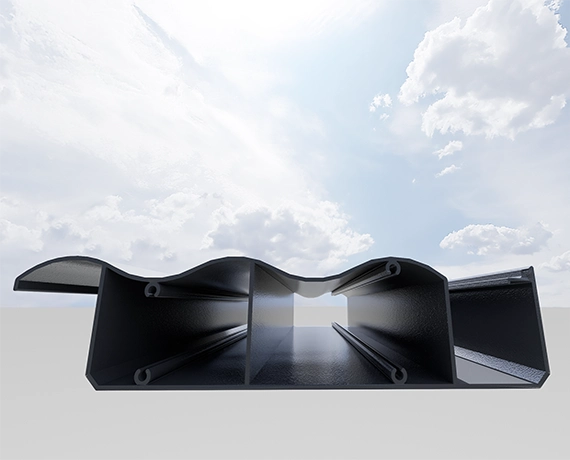

Double-Layer Slats
Dual-layer slats enhance strength, insulation, and resistance to wind and snow loading.

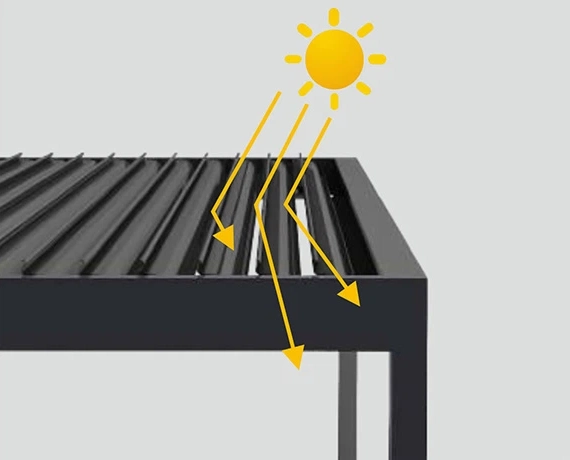

0-120 Degree Adjustable
Louvers rotate from 0 to 120 degrees, allowing precise control of sunlight, shade, and airflow.
80% Ventilation Rate
Allows up to 80% airflow, promoting natural ventilation and improved outdoor comfort.

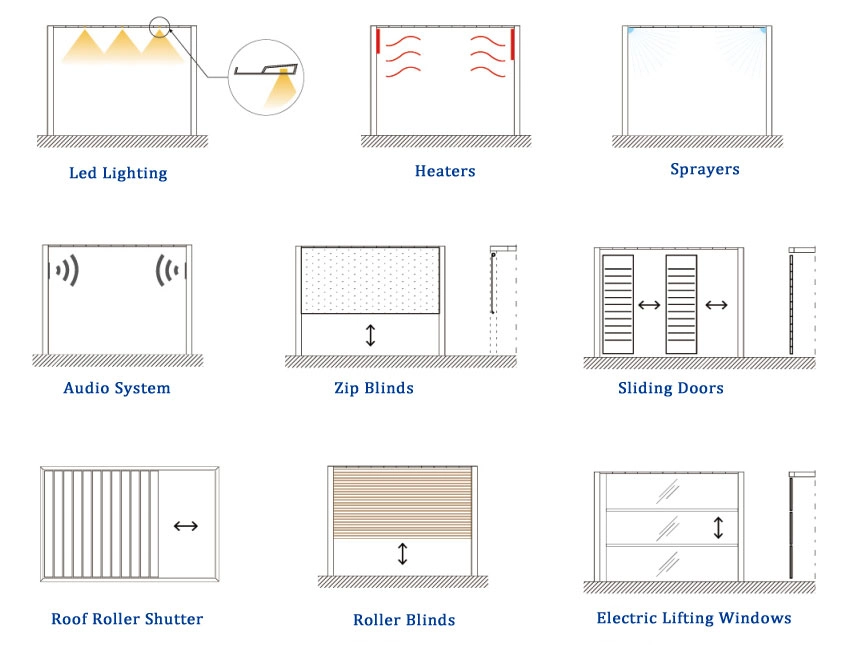

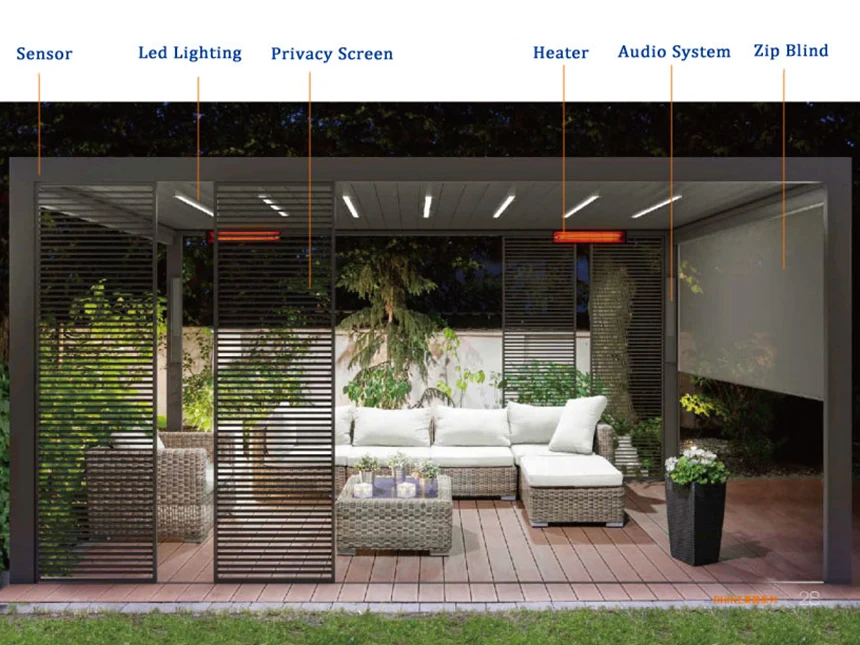

Additional Accessories
We also provide additional accessories for you to enhance functionality, comfort, and aesthetics of your outdoor space.
- Wind and Rain Sensors - Automatically responds to changing weather conditions.
- LED Lighting - Integrated ambient lighting for day and night use.
- Privacy Screen - Enhances privacy and blocks unwanted views.
- Sprayers - Cooling mist system for hot weather.
- Heater - Provides warmth for year-round outdoor comfort.
- Audio System - Built-in speakers for outdoor entertainment.
- Zip Blinds - Wind-resistant shading and weather protection.
- Sliding Doors - Smooth-gliding panels for enclosed spaces.
- Electric Lifting Windows - Motorized vertical windows with flexible ventilation.
- Roller Blinds - Simple sun shading with clean aesthetics.
- Roof Roller Shutter - Retractable roof shading and weather control.
